I、 Product Introduction

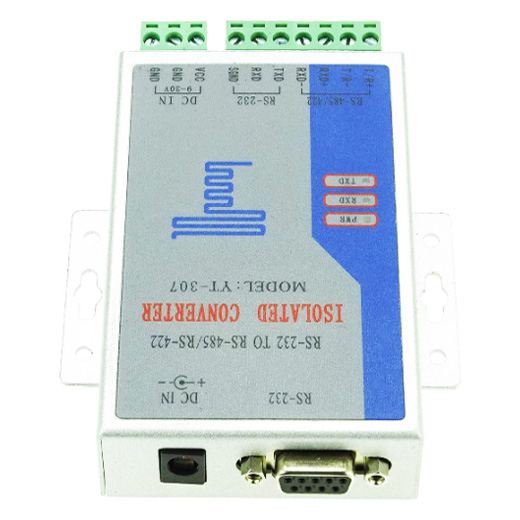

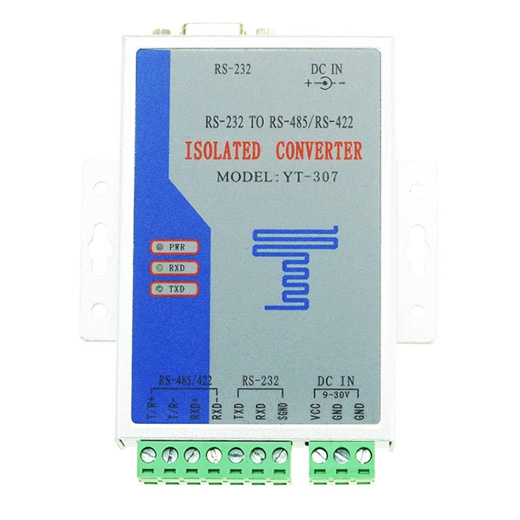

YT-307 is an industrial grade RS-232 signal to RS-485/422 signal to/from interface converter. It is a cost-effective data interface conversion product that can work stably in strong interference environments. It converts a single ended RS-232 signal into a balanced differential RS-485/422 signal to improve anti-interference ability during data transmission, and can extend the RS-232 communication distance to 1.2 kilometers. This product adopts a high-speed optoelectronic isolation design, further improving its anti-interference ability and working stability. It can be powered by an external 9-12V DC power supply, and is equipped with a zero delay automatic transceiver conversion circuit. The unique I/O circuit automatically controls the direction of data flow, ensuring that the program written in RS-232 half duplex mode can run in RS-485/422 mode without modification. The converter transmission rate is 300-115.2Kbps, It can be applied to form a point-to-point, point-to-multipoint remote multi machine communication network between the main control computer, the main control computer, the microcontroller, or peripherals, achieving multi machine response communication. It has the characteristics of small size, long transmission distance, high speed, and stable performance.
YT-307 is designed with aluminum alloy shell, adopts wire pressing terminal interface, and is equipped with pluggable terminal blocks. It is flexible and convenient to use. It is widely used in point-to-point communication, industrial automation control system, power communication control, all-in-one card, Door security, parking lot system, industrial distribution system, various remote control systems, POS cash registers, banks, insurance, securities, canteen food selling system, traffic toll collection system, various PLC, power meter reading Gas meter reading, etc.
II、 Product Features
1. Convert RS-232 data transmission (TXD) and data reception (RXD) signals into balanced RS-485/422 signals
2. External 9-30V DC power supply with strong load capacity. The product comes standard with a 12V/500mA high-quality switch DC power supply.
3. Adopting pure hardware data flow automatic control technology to automatically identify and control the direction of data transmission
4. Designed with high-speed optoelectronic isolation scheme, it has strong anti-interference ability
5. The RS232 serial port adopts serial port power acquisition technology, which is completely electrically isolated from the RS485 power supply.
6. RS485/422 output terminal with 1200W lightning protection
7. Adopting original industrial grade communication chips, ensuring stability and reliability, supporting 128 points
8. Default ear mounting with optional rail mounting.
III、 Product List

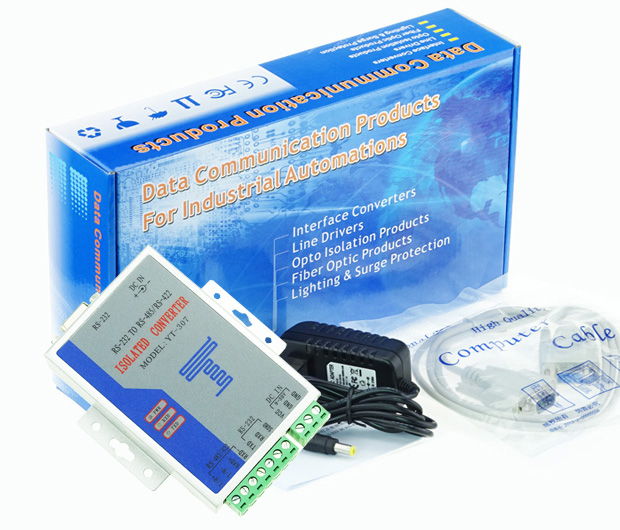

1. YT-306 industrial grade photoelectric isolation RS232 to RS485/422 converter 1 set
2. 12V/500mA DC power supply 1 set
3. DB9 serial data cable from public to female 1 set
4. product manual 1 set
RS485 network wiring precautions:
1. The RS485/422 signal bus should use twisted pair or shielded twisted pair. When wiring, it cannot be combined with strong current (220V/380V) wiring. Combined wiring refers to the 485 network cable and strong current line running in the same pipe or close to each other (within 30cm). Generally, the RS485/422 signal line should be at least 0.5 meters away from the strong current line.
2. The RS485/422 bus connection should adopt a standard "hand in hand" wiring method, which means that the RS485/422 signal line starts from the control host to the nearest first device, then starts from the first device to the nearest second device, and so on, in order to minimize interference as much as possible. RS485 network wiring should avoid star connections as much as possible! Unless using an RS485 hub.
● compatible with RS-232, RS-485 TIA/EIA.
● Automatic send / receive data, no flow control signal to the external (RTS).
● communication rate: 300BPS-115.2KBPS.
● can connect 32 RS-485 or RS-422 interface equipment.
● communication distance: 5000 meters (9600BPS).
● work: asynchronous half duplex (RS-485) or asynchronous full duplex (RS-422) general, without jumper settings.
● photoelectric isolation type (2.5KVrms isolation voltage /500VDC insulation), RS-485/422 provides the lightning protection of each line of 600W and prevent a total interference.
● The electrical interface: DB9 pass to the DB9 pin type connector.
● The transmission medium: twisted pair or shielded wire.
● size: 113mmX55mmX25mm.
● size: 113mmX55mmX25mm.
● The use of the environment: -25 ℃ to 70 ℃, relative humidity of 5% to 95%.
● Suitable for all the communication software, plug and play.
● support DOS/WIN95/WIN98/WIN2000/NT/XP Linux.
