I、 Product Introduction

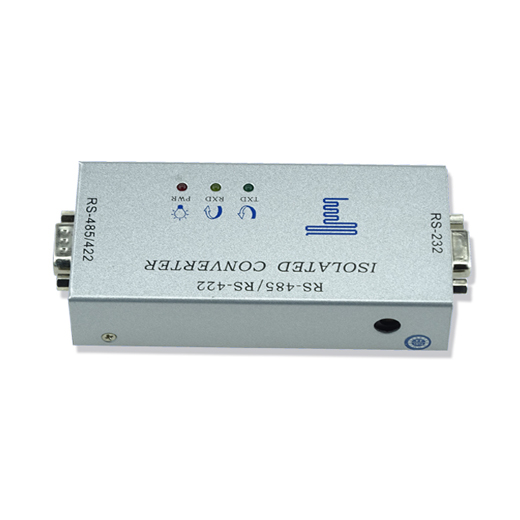

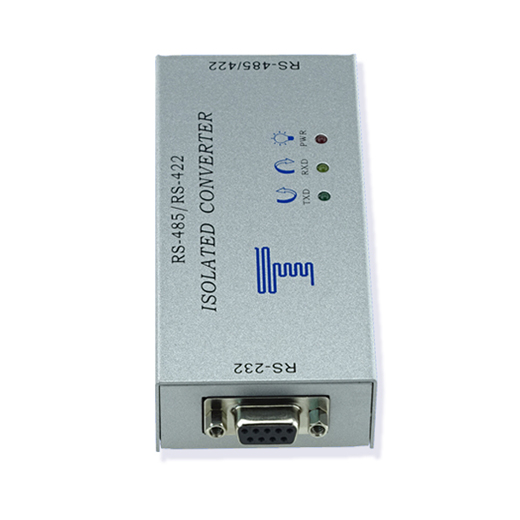

YT-306 is an industrial grade RS-232 signal to RS-485/422 signal to/from interface converter. It is a cost-effective data interface conversion product that can work stably in strong interference environments. It converts a single ended RS-232 signal into a balanced differential RS-485/422 signal to improve anti-interference ability during data transmission, and can extend the RS-232 communication distance to 1.2 kilometers. This product adopts a high-speed optoelectronic isolation design, further improving its anti-interference ability and working stability. It can be powered by an external 9-12V DC power supply, and is equipped with a zero delay automatic transceiver conversion circuit. The unique I/O circuit automatically controls the direction of data flow, ensuring that the program written in RS-232 half duplex mode can run in RS-485/422 mode without modification. The converter transmission rate is 300-115.2Kbps, It can be applied to form a point-to-point, point-to-multipoint remote multi machine communication network between the main control computer, the main control computer, the microcontroller, or peripherals, achieving multi machine response communication. It has the characteristics of small size, long transmission distance, high speed, and stable performance.
YT-306 is designed with aluminum alloy shell, adopts wire pressing terminal interface, and is equipped with pluggable terminal blocks. It is flexible and convenient to use. It is widely used in point-to-point communication, industrial automation control system, power communication control, all-in-one card, Door security, parking lot system, industrial distribution system, various remote control systems, POS cash registers, banks, insurance, securities, canteen food selling system, traffic toll collection system, various PLC, power meter reading Gas meter reading, etc.
II、 Product Features
1. Convert RS-232 data transmission (TXD) and data reception (RXD) signals into balanced RS-485/422 signals
2. External 9-12V DC power supply with strong load capacity. The product comes standard with a 12V/500mA high-quality switch DC power supply.
3. Adopting pure hardware data flow automatic control technology to automatically identify and control the direction of data transmission
4. Designed with high-speed optoelectronic isolation scheme, it has strong anti-interference ability
5. The RS232 serial port adopts serial port power acquisition technology, which is completely electrically isolated from the RS485 power supply.
6. RS485/422 output terminal with 1200W lightning protection
7. Adopting original industrial grade communication chips, ensuring stability and reliability, supporting 128 points
8. Default ear mounting with optional rail mounting.
III、 Product List

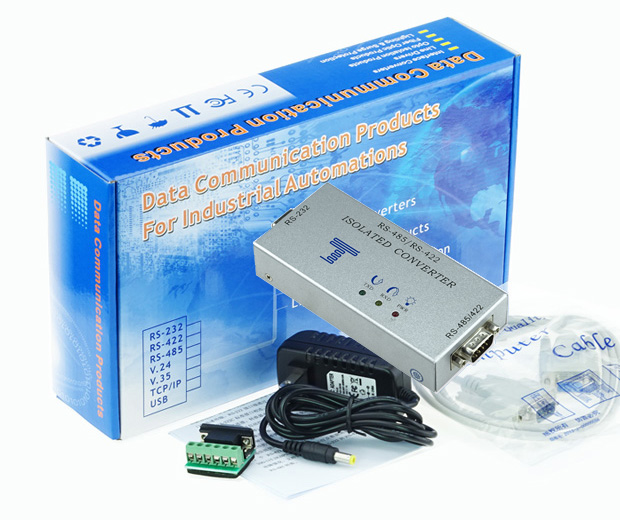

1. YT-306 industrial grade photoelectric isolation RS232 to RS485/422 converter 1 set
2. 1 12V/500mA DC power supply
3. 1 DB9 serial data cable from public to female
4. 1 DB9 wiring terminal
5. 1 product manual
System parameters
Interface: Compliant with EIA RS-232, RS-485, 422 standards
RS-232 signals: TX, RX, GND
RS-485 signal: T/R+, T/R-
RS-422 signals: T/R+, T/R -, R+, R-
Working mode: Supports asynchronous or synchronous transmission, point-to-point or multipoint, 2-wire half duplex or 4-wire full duplex
Baud: 300 ～ 115.2Kbps, automatic detection of serial port signal rate
Direction control: automatic discrimination and control of data transmission direction
Transmission distance: 1200 meters (9600bps) on the RS-485 end, and it is recommended not to exceed 15 meters on the RS-232 end
Optoelectronic isolation: isolation voltage 2.5KVrms
Lightning protection: RS-485/422 output provides 1500W of lightning protection
Indicator light: Equipped with power and data flow indicators, which can be used to determine the type of fault.
Static electricity protection: 15KV static electricity protection
Work environment
Working temperature: -20 ℃ to 60 ℃
Humidity: Relative humidity 5% to 95%
Working power supply
Input power supply: 12V external DC power supply (standard 220V to DC12V power supply)
Power consumption: Static power consumption within 100mA, average dynamic power consumption within 200mA
Mechanical structure
long × wide × Height: 113mmX55mmX25mm
Shell: aluminum alloy
Color: Silver
Weight: 150g
